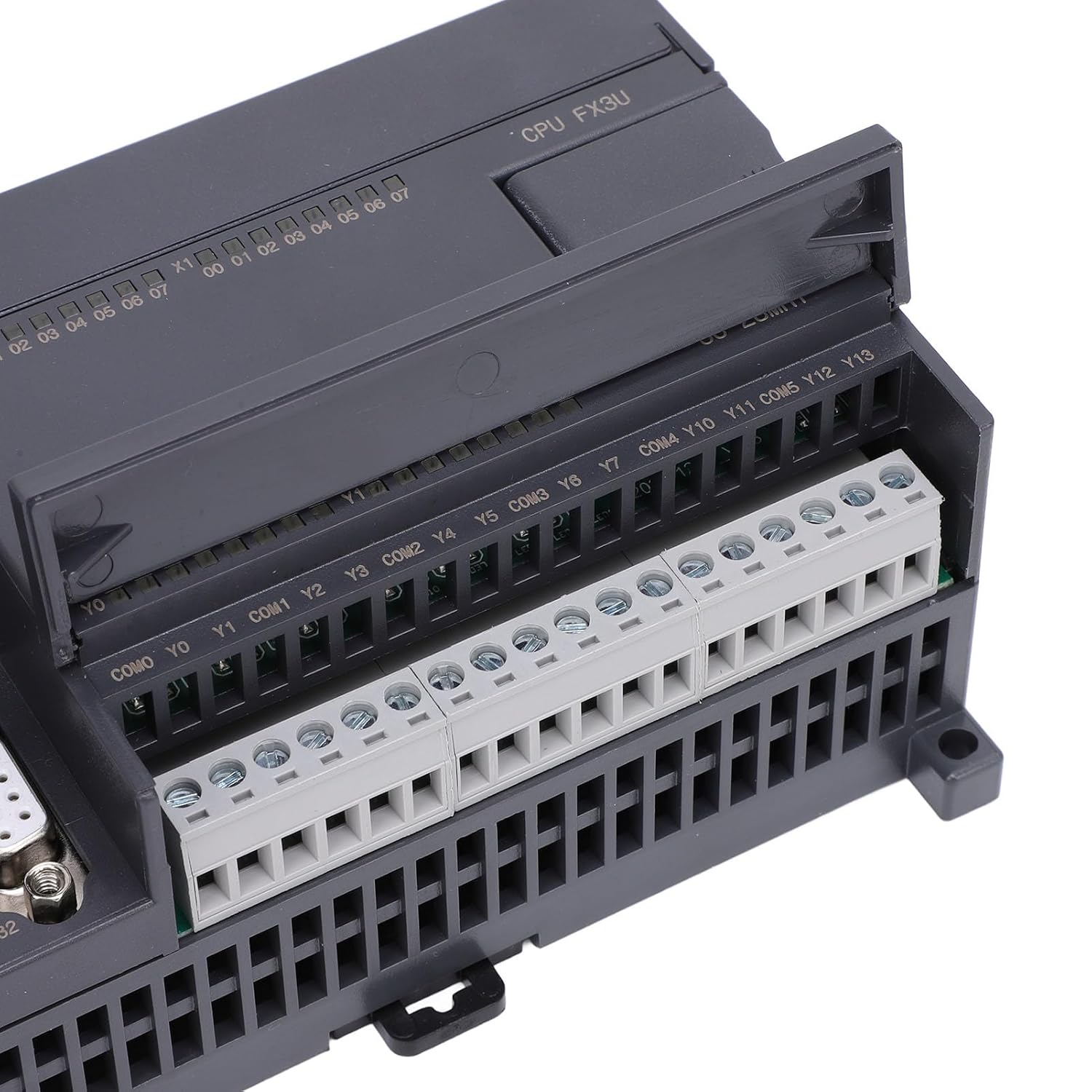

Fafeicy Programmable Logic Controller Module, 16 Input 12 Output Industrial PLC Control Board DC24V for Automation Systems and Machinery Control

Specification: Item Type: PLC Control Board Model: WS3U-28MR-K-B Material: ABS Size: Approx. 140 x 100 x 63mm / 5.51 x 3.94 x 2.48in Download Speed: 38.4Kb Memory Capacity: 8000 Input Points: 16 Output Points: 12 Output Type: Relay Output Current: 5A Load: 24V High Speed Count: 6 Way, 3K Analog Input, Output: Default 2AD 0-10V, Convertible to 4AD for MODBUS: Built In How to Use: Follow the instructions in the electronic manual to use. Package List: 1 x PLC Control Board Notice: Installation and Usage Instructions: 1. To prevent the internal temperature of the machine from getting too high, it is recommended to install it by wall hanging. Sufficient space should be left above and below for heat dissipation. 2. Leave a gap​ of at least 50mm between the programmable controller host and other equipment or structures. Keep away from high voltage lines, high voltage equipment, and power equipment as much as possible. 3. Avoid dust, oil, erosive environments, pay attention to electrostatic guard (avoid direct contacting of hands with circuit board lines). 4. Use adhesive isolation columns for fixing installation.

• Stable Communication：With a default download speed of 38.4Kbps and compatibility with GX Developer/GX Works2 software, this PLC control board enables straightforward programming, monitoring, and debugging, ensuring reliable communication for seamless integration into automation systems.
• Efficient Power Management：Operating at DC24V with a low static current of 30mA, this module minimizes energy consumption while supporting incremental power adjustment based on output relay activation, making it suitable for continuous industrial applications.
• Flexible Load Support：The relay outputs handle up to 5A current with a recommended continuous load under 3A, while transistor outputs support 1A drive current (500mA sustained), providing adaptability for various industrial load requirements.
• Multi-Functional I/O：Featuring 6 analog channels (0-10V/0-20mA), 2 analog outputs (0-10V), 6 high-speed counting inputs, and 8 pulse outputs, this module offers diverse signal processing capabilities for precision control in complex automation scenarios.
• High-Speed Processing: Equipped with a 32-bit high-performance CPU, this programmable logic controller module delivers rapid data processing and efficient operation, supporting complex control tasks in industrial environments with 8000 steps of memory capacity for flexible programming.
